AV-40 - Special Connector

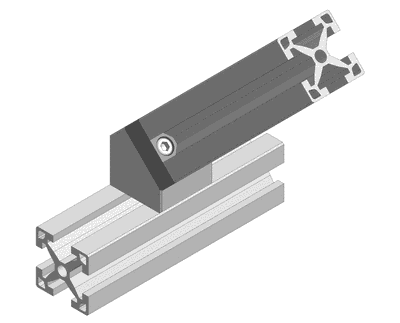

Application: Plate connector for 40x40 profiles.For mounting on BÖMA profiles.

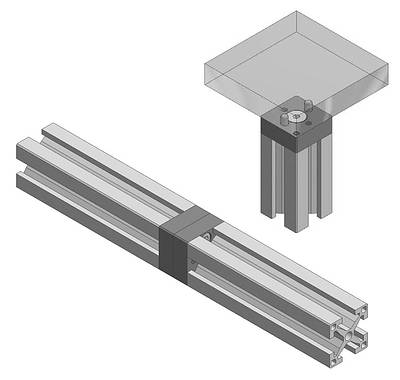

Butt joint 40x40: 2 x AV-40
Butt joint 40x80: 4 x AV-40
Butt joint 80x80: 8 x AV-40
40x40 to flat surface: 1 x AV-40
40x80 to flat surface: 2 x AV-40
80x80 to flat surface: 4 x AV-40

Material: Cast zinc coated

Weight: 80g

Code: AV-40

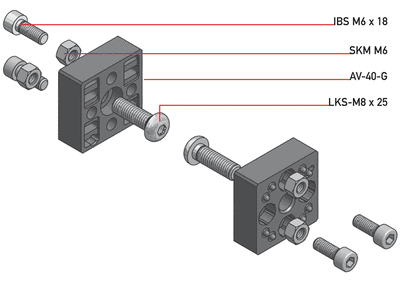

Set:

1 x AV-40-G
1 x LKS-M8x25 ISO 7380
2 x IBS-M6x18 DIN 912
2 x SKM-M6 DIN 934

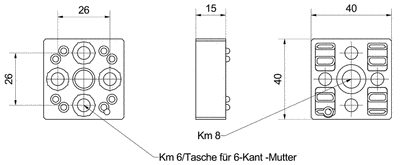

CAD-Files: AV-40 - dwg   AV-40 - dxf

AV-40 - stp

AV-40 - sat
