KR-40 - Ball catch

Application: Locking of doors, swing doors
and movable panel elements..

Material: Nickel plated brass, Galvanized steel

Weight: 146g

Code: KR-40

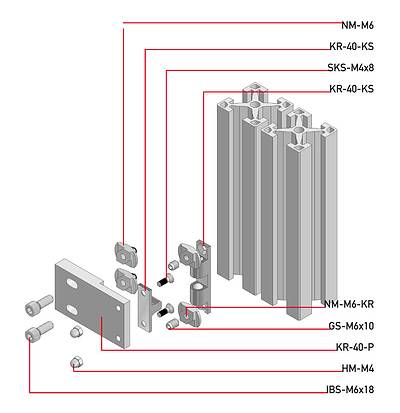

Set:

1 x   KR-40-KS
1 x   KR-40-P
2 x   HM-M4
2 x   SKS-M4x8   DIN 7991
2 x   NM-M6-KR
2 x   IBS-M6x18  DIN 912
2 x   NM-M6
2 x   GS-M6x10   DIN 914

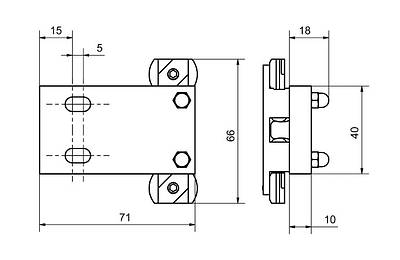

CAD-Files: KR-40 - dwg   KR-40 - dxf

KR-40 - stp

KR-40 - sat
