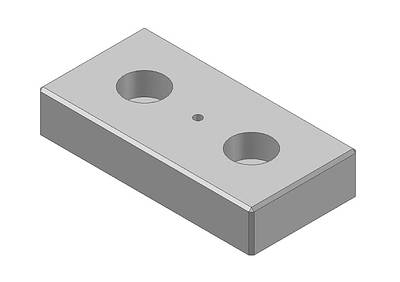

SFP-XxY-Z - Base plate with centre mark

Application: Adjustable foot plate with adjustable feet for screws or ring Centering for custom thread

Material: Galvanised steel

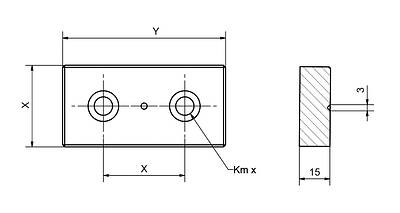

Code:                                                          Code                   Weight   Senkung x
SFP-40x80-Z         339 g     Km 8
SFP-80x80-Z         683 g     Km 8
SFP-50x100-Z       529 g     Km 10
SFP-100x100-Z     1063 g     Km 10

CAD-Files:

SFP-40x80-Z - dwg

SFP-80x80-Z - dwg

SFP-50x100-Z - dwg

SFP-100x100-Z - dwg

 SFP-40x80-Z - dxf

SFP-80x80-Z - dxf

SFP-50x100-Z - dxf

SFP-100x100-Z - dxf

SFP-40x80-Z - stp

SFP-80x80-Z - stp

SFP-50x100-Z - stp

SFP-100x100-Z - stp

SFP-40x80-Z - sat

SFP-80x80-Z - sat

SFP-50x100-Z - sat

SFP-100x100-Z - sat
