AV-50 - Special Connector

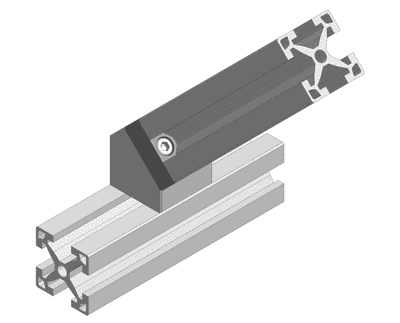

Application: Plate connector for 50x50 profiles. For mounting on BÖMA profiles.
Butt joint 50x50: 2 x AV-50
Butt joint 50x100: 4 x AV-50
Butt joint 100x100: 8 x AV-50
50x50 to flat surface: 1 x AV-50
50x100 to flat surface: 2 x AV-50
100x100 to flat surface: 4 x AV-50

Material: Aluminum coated

Weight: 129g

Code: AV-50

Set:

1 x AV-50-G
1 x M10x30 DIN 7991-SKS
2 x IBS-M8x18 DIN 912
1 x SPS-8x20 DIN 7346

CAD-Files: AV-50 - dwg   AV-50 - dxf

AV-50 - stp

AV-50 - sat
