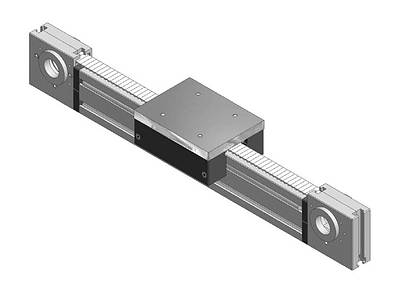

LAS-50 - Linear axis 50x100 with steel rollers

Application: Linear axis with ball bearing, hardened steel rollers
on hardened guide rails.
for moving and conveying of goods, tools, etc.
For the construction of portal systems, Handling
units and vertical lift units.

Technical data: vmax 2 m/s
Md max 70 Nm
s/rotation 200 mm
deffectiv 63,66 mm
Mmin.torque 1 Nm
Repeatable accuracy +/– 0,15 mm
Wie can give you advice on static and
dynamic loading

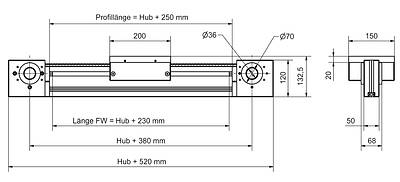

Code: LAS-50-[Hub in mm]
