V-20x40 - Corner connector

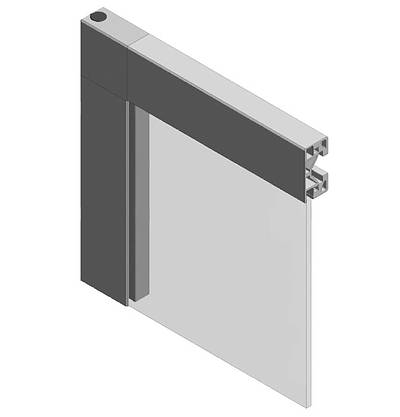

Application: construction of light doors up to 1000 x 1000 mm. Corner connection of 20x40 profiles. Within the framework, 5 mm thick panel elements can be fitted without modification.

Panel size = Opening + 16 mm

Material: Clear Anodized Aluminum

Weight: 85g

Code: V-20X40

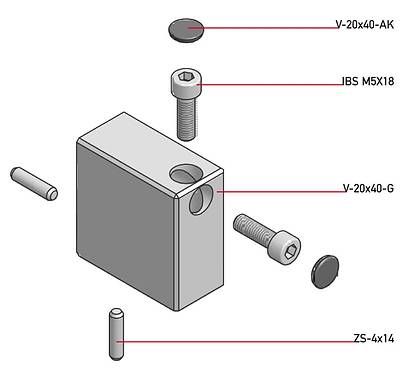

Set:

1 x V-20x40-G
2 x IBS-M5x18 DIN 912
2 x ZS-4x14 DIN 6325
2 x V-20x40-AK

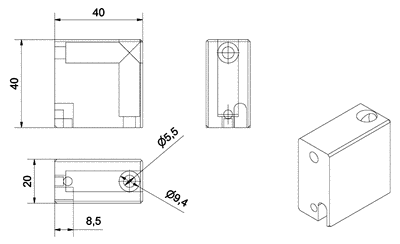

CAD-Files: V-20X40 - dwg   V-20X40 - dxf

V-20X40 - stp

V-20X40 - sat
