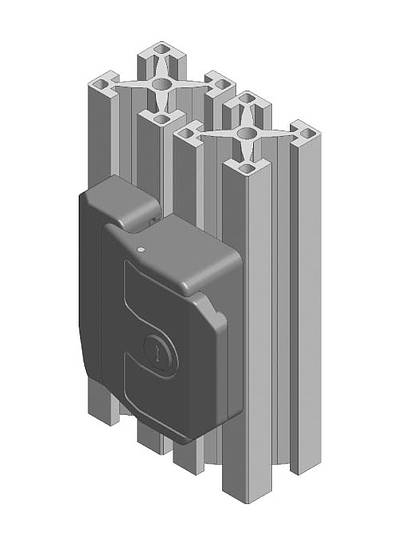

TV-40/50

Application:
Closing device for doors and flaps.
Can be fastened to BOEMA 40 and 50 Grid
profiles. In order to fix the door catch,
the profiles will be drilled (two holes d= 7mm)
Material:
Zinc die-casting, black
Set:
1 x           TV-40/50-G
4 x           IBS-M6x35    DIN 912
Code:                              Weight
TV-40/50-S (with lock) 560 g
TV-40/50 (without lock) 525 g

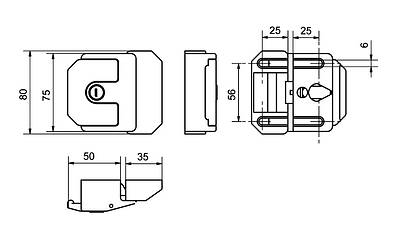

CAD-Files: TV-40/50 - dwg   TV-40/50 - dxf

TV-40/50 - stp

TV-40/50 - sat
