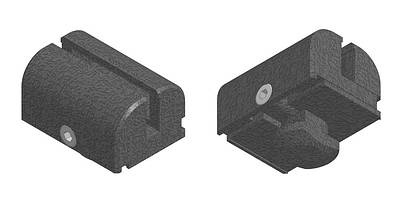

UF-40/50 - Unifix

Application: Two-part clamp with screw for panel elements 3-10 mm
Cutting area:
Opening height of the frame - 17 mm
Opening width of the frame - 17 mm

Material: Black plastic

Weight: 26g

Code: UF-40/50

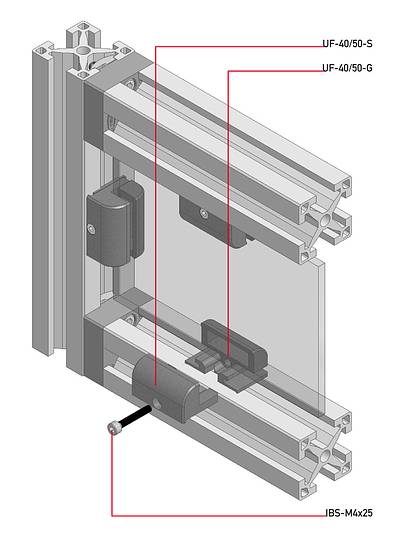

Set:

1 x           UF-40/50-G
1 x           UF-40/50-S
1 x           IBS-M4x25    DIN 912
1 x           M4 Gewindeeinsatz

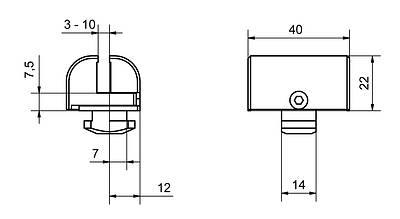

CAD-Files: UF-40/50 - dwg   UF-40/50 - dxf

UF-40/50 - stp

UF-40/50 - sat
