SH-16

Application:
Safety interlock with ball retainer door catch
and mounting plate. Can be used for swing
doors, flaps and sliding doors which must be
closed in order to guarantee safe operation.

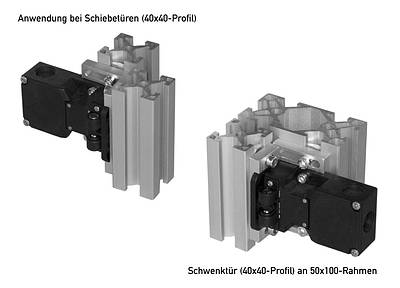

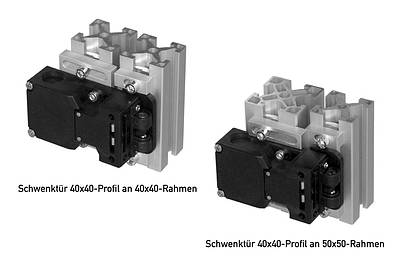

Also included is the fixing set for universal fixing
of the interlock with all profile configurations
(see pictures).
Material:
Plastic glass fibre strengthened
Interlock: 1 Key, change-over-contact with
a double contact
Set:
1 x      AZ-16
1 x      AZ-16-BH
1 x      AZ-16-SH
4 x      NM-M6
4 x      IBS-M6x18   DIN 912
2 x      IBS-M5x12   DIN 912
2 x      SKS-M5x8    DIN 7991
Code: SH-16
Weight: 300 g
Note:
Other interlock types are available upon request

CAD-Files: AZ-16-Betatiger - dwg   AZ-16-Betatiger - dxf

AZ-16-Betatiger - stp

AZ-16-Betatiger - sat

CAD-Files: AZ-16-Kugel - dwg   AZ-16-Kugel - dxf

AZ-16-Kugel - stp

AZ-16-Kugel - sat

CAD-Files: AZ-16 - dwg   AZ-16 - dxf

AZ-16 - stp

AZ-16 - sat

CAD-Files: AZ-16-BH - dwg   AZ-16-BH  - dxf

AZ-16-BH  - stp

AZ-16-BH  - sat

CAD-Files: AZ-16-SH  - dwg   AZ-16-SH  - dxf

AZ-16-SH  - stp

AZ-16-SH  - sat
