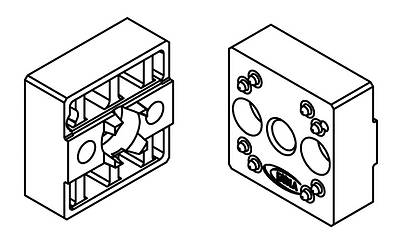

V-40 - Grid 40 Connector

Application: 90 degree connection of profiles in grid 40.
40x40: 1 pcs V-40
40x80: 2 pcs V-40
40x80: 2 pcs V-40-E
80x80: 4 pcs V-40-E

Material: Die-cast zinc coated

Weight: 0.84Kg/m

Code:

V-40 143 g

V-40-E 129 g

V-40-L * 153 g electrically conductive

V-40-LE * 139 g electrically conductive

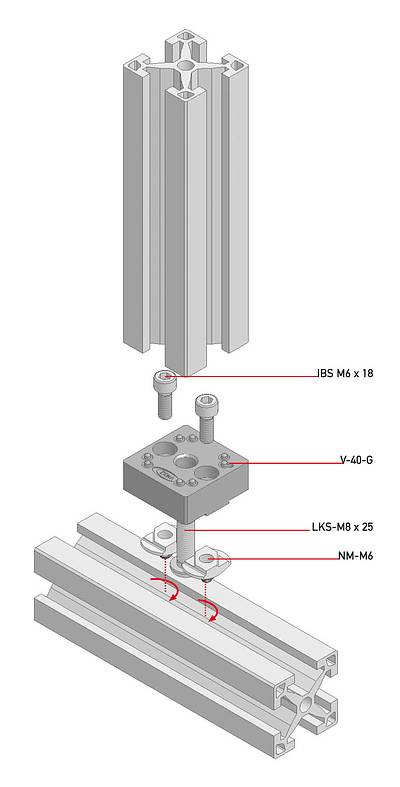

Set V-40:

2x IBS M6x18 DIN 912
1x V-40-G
1x LKS M8x25 ISO 7380
2x NM-M6


Set V-40-E:

1x IBS M6x18 DIN 912
1x V-40-G
1x LKS M8x25 ISO 7380
1x NM-M6

Note: * Such as V-40 and V-40-D, but with additional connecting pin (VS-40/50)
Stainless steel

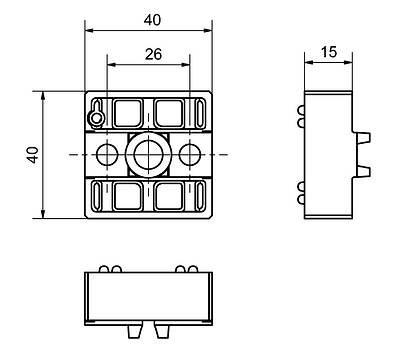

CAD-Files: V-40 - dwg   V-40 - dxf

V-40 - stp

V-40 - sat
